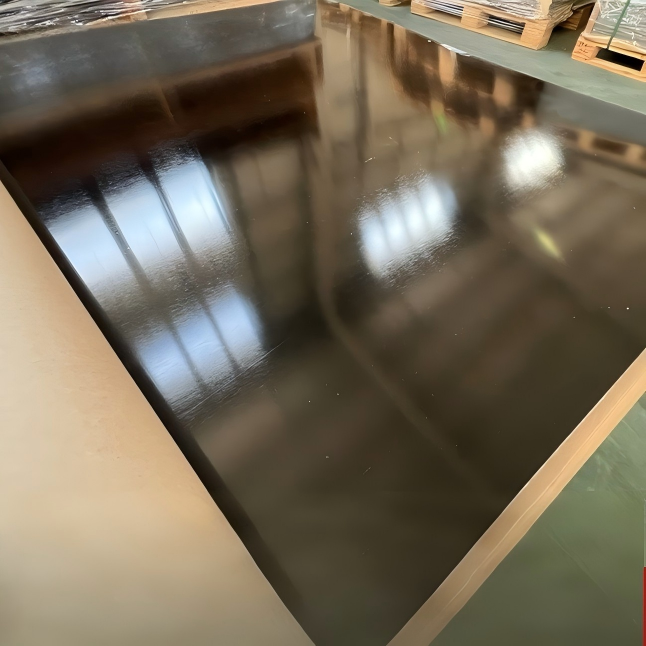

Our ESD FR4 epoxy fiberglass laminate (also known as anti-static fiberglass board) is a high-quality industrial composite material. It is composed of high-performance woven fiberglass fabric and advanced anti-static epoxy resin, tightly pressed together under high temperature and high pressure.

Unlike inexpensive sheets with temporary coatings, our material incorporates conductive particles—such as high-quality carbon black—uniformly into the matrix. This ensures stable, long-lasting electrostatic discharge (ESD) protection that will not wear or wash off, while maintaining a surface resistivity of 10⁶–10⁹ Ω to safely dissipate static charges without generating sparks.

Wuxi Shangjue Technology Co., Ltd. offers three professional-grade categories to meet your structural layout and budget constraints:

1.Single-sided anti-static sheet: Features a dual-color structure. One side is black and anti-static (10⁶–10⁹ Ω), while the other is light green, offering electrical insulation and high-temperature resistance.

2.Double-sided anti-static sheet: Consists of a high-dielectric-constant, aqua-green core sandwiched between two layers of high-quality black anti-static material.

3.Fully encapsulated anti-static board: Offers complete three-dimensional uniformity. Every part—including internal surfaces exposed after deep CNC machining or milling—maintains identical anti-static properties.

•

• Our custom ESD FR4 sheets provide reliable protection and structural integrity for extensive electronics and automotive supply chains:

  • Electronics Manufacturing: PCB ICT/FCT test fixtures, bases for precision testing instruments, and surface pads for electronic assembly workbenches designed to protect IC components.

  • New Energy Sector: Inter-cell insulation gaskets for high-discharge lithium battery packs, solar photovoltaic backsheet trays, and insulation for heavy-duty electric vehicle (EV) components.

  • Precision industrial housings: protective covers for electronic components, high-voltage capacitor substrates, protective platforms for laser cutting tables, and laboratory vacuum chambers.

  • Advanced robotics technology: UAV (Unmanned Aerial Vehicle) robotic arms, structural frames/mounts, and automated factory electrical panels.

• • Excellent heat resistance and flame retardancy: withstands continuous operating temperatures up to 180°C. Certified to the UL94 V-0 self-extinguishing flame retardancy standard.

  • Superior surface flatness: A smooth, defect-free surface—devoid of pits or bubbles—enabling the precise placement of sensitive microchips.

  • Excellent moisture and chemical resistance: Low water absorption ensures high dimensional stability in humid cleanroom environments, resisting warping, twisting, and chemical solvent attack.

  • High mechanical strength and machinability: High flexural strength makes it a robust chassis for industrial control cabinets, while it maintains clean cutting edges during machining.

    • thing	unit	Test conditions	Specification value							Typical value
      thermal stress	——	288℃, 10 seconds	No layering							No layering
      Bending strength	Newtons per millimeter	through	≥415							500
      		full	≥345							450
      		IPC-TM-650 2.4.4	IPC-4101A3.9.1.3
      Flammable	0	E 24/125	V-0							V-0
      Flammable			UL94
      	megaohm		1-103							1-103
      surface resistivity		After water
      	MΩ-cm		≥106							2.0×10⁸
      Volume resistivity ​		After water
      	￣	1MHz	≤5.4							4.9
      Dielectric constant ​		C-24/23/50	IPC-4101A3.11.1.1
      	￣	V1MHZ	≤0.035							0.018
      		C-24/23/50	IPC-4101A3.11.1.2
      Loss Tangent	%	D24/23	≤0.8

      Our customized ESD FR4 sheets offer reliable protection and structural integrity across vast electronics and automotive supply chains:

      • Electronic Manufacturing: PCB ICT/FCT test fixtures, precision testing instrument bases, and electronic assembly workbench surface liners to safeguard IC components.

      • New Energy Sector: Cell-to-cell insulation spacers for high-drain lithium battery packs, solar photovoltaic backing trays, and heavy-duty electric vehicle (EV) component insulation.

      • Precision Industrial Enclosures: Electronic component protective shields, high-voltage capacitor substrates, laser cutting platform protection tables, and laboratory vacuum chambers.

      • Advanced Robotics: Unmanned aerial vehicle (UAV/Drone) arms, frame brackets, and automated factory distribution panels.

  • Why Partner With Us? Our B2B Core Advantages

    • Wholesale Full Master Sheets: We are a volume supplier stocking standard 1020mm × 1220mm master panels. Benefit from massive factory-direct wholesale pricing, robust bulk inventory, and shorter lead times for container or pallet-load shipping.

    • Fully Customizable Thickness & Colors: Break away from rigid catalog limits. We accept custom orders to adjust the board thickness (from ultra-thin 0.3mm to rigid 50mm) and manufacture specific industrial colors (Matte Black, Light Green, Aqua Green) to align perfectly with your workshop branding or technical specs.

    • OEM Processing from Drawings or Samples: Whether you have standard CAD blueprints (.DXF, .DWG, .STEP, or Gerber files) or only a physical component in hand, our engineering team can duplicate, program, and precision-fabricate it. We provide turnkey services from sample profiling to mass production.

    • Precision CNC Fabrication (Zero-Defect Quality): Equipped with advanced industrial CNC routing, milling, multi-hole drilling, and beveling machinery, we handle complex 3D contours and tight tolerance geometries, saving your factory time, reducing scrap, and slashing labor costs.
