💡 Custom Structural Insulation & Testing Fixture Components

Our custom FR4, G10, and Bakelite Support Plates are high-density, industrial-grade insulation composites engineered for precision manufacturing, electronics assembly, and high-voltage power distribution environments.

As a specialized B2B wholesale manufacturer and contract fabricator, SJ CNC Insulation goes beyond distributing raw stock. We specialize in transforming high-performance laminates into complex, custom-shaped components. Whether you need custom-shaped epoxy resin busbar holders, robust battery cell testing racks, or intricate micro-slots for PCB electronic fixtures, our factory delivers zero-defect parts tailored exactly to your technical blueprints.

⚙️ Section 1: Our B2B Core Advantages & Custom Slices

• Processing Strictly by Drawings or Samples: Send us your technical layouts (.DXF, .DWG, .STEP) or ship a physical reference sample. We provide professional design-for-manufacturing (DFM) verification and execute precise replications.

• Advanced CNC Milling & Automated Machining: Equipped with high-speed CNC machining centers, automated routers, and precision lathes, we seamlessly handle complex structural milling, multi-hole drilling, deep slotting, profiling, and threading.

• Wholesale Sourcing & Flexible Sizing: We support full-sheet wholesale distribution, custom thicknesses, and custom material colors (including standard aqua green, bright yellow, orange-brown, and black).

• Certified Quality Standards: Our production processes strictly adhere to ISO9001, RoHS, and REACH international benchmarks, ensuring elite reliability for high-end global markets.

🌟 Section 2: Material Selection & Performance Features

🟢 FR4 / G10 Epoxy Glass Cloth Laminates

• High Dielectric & Voltage Insulation: Exceptional dielectric performance under both dry and humid conditions, preventing surface tracking and leakage.

• Extreme Mechanical Strength: Exceptional strength-to-weight ratio; does not crack, warp, or deform under intense clamping pressures or repetitive nesting cycles.

• Flame Retardant: Compliant with UL94 V-0 standards for self-extinguishing safety.

🟤 Phenolic Bakelite Sheets

• Cost-Effective Structural Rigidity: Provides outstanding mechanical support and reliable insulation for low-to-medium frequency applications.

• Excellent Machinability: Ideal for quick-turn punching, clean hot-stamping, and intricate routing without structural edge delamination.

• Thermal Endurance: Performs stably under continuous operating temperatures without compromising dimensional tolerances.

  🎯 Section 3: Mainstream Industrial & Assembly Applications

  Our custom-shaped electrical insulation brackets and fixture plates are heavily relied upon across modern manufacturing lines:

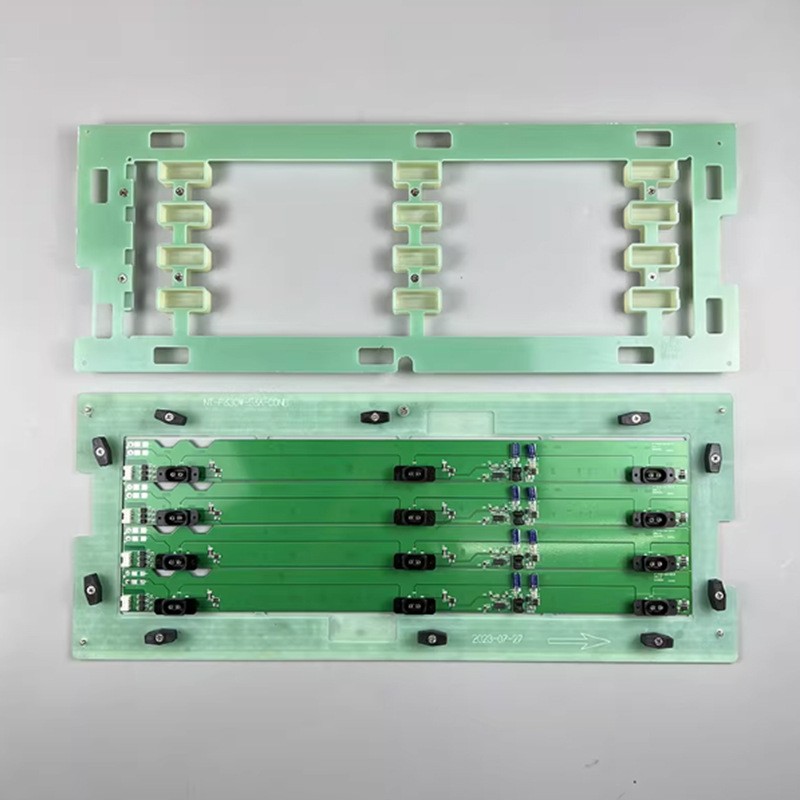

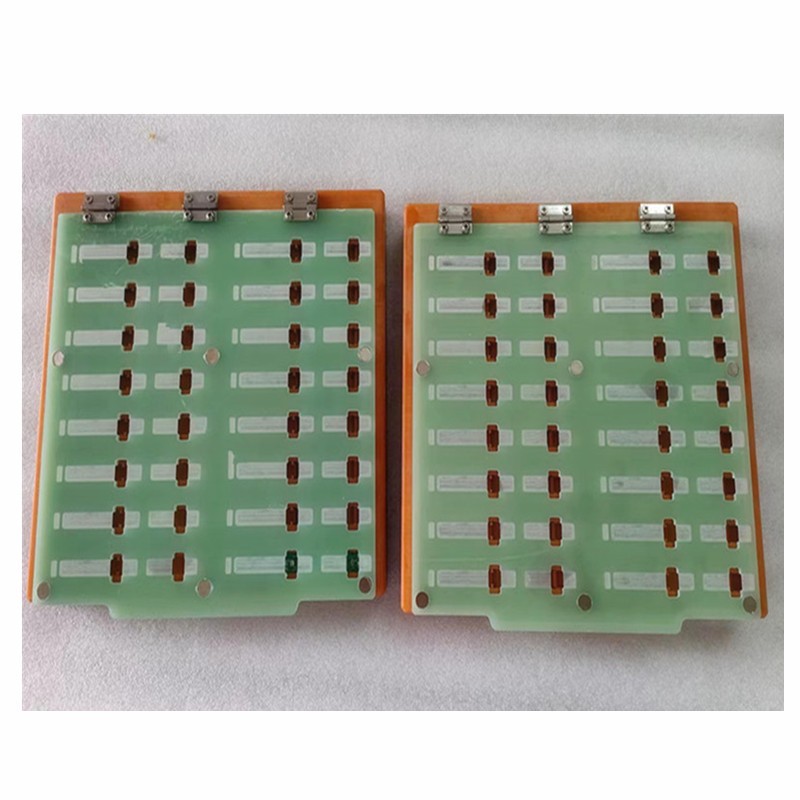

  1. Testing Fixtures & Jigs: Form-fitting structural backing plates, functional nestings, and test matrix beds for ICT/FCT testing of printed circuit boards (PCBs).

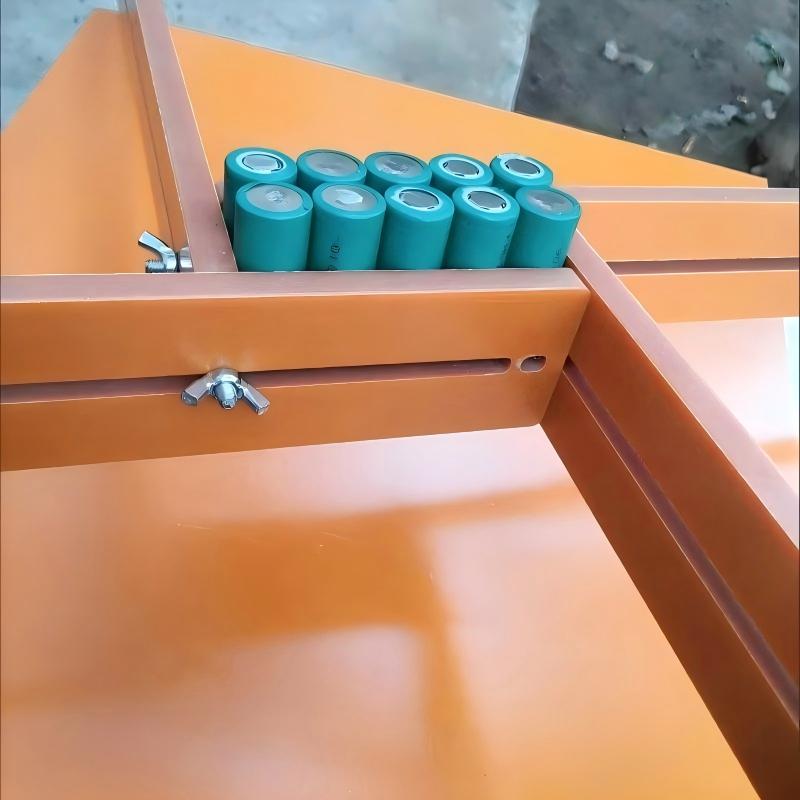

  2. Battery Pack & EV Assembly: Statically reliable clamping fixtures, alignment grids for cylindrical cells, and custom protective barriers for lithium-ion battery testing modules.

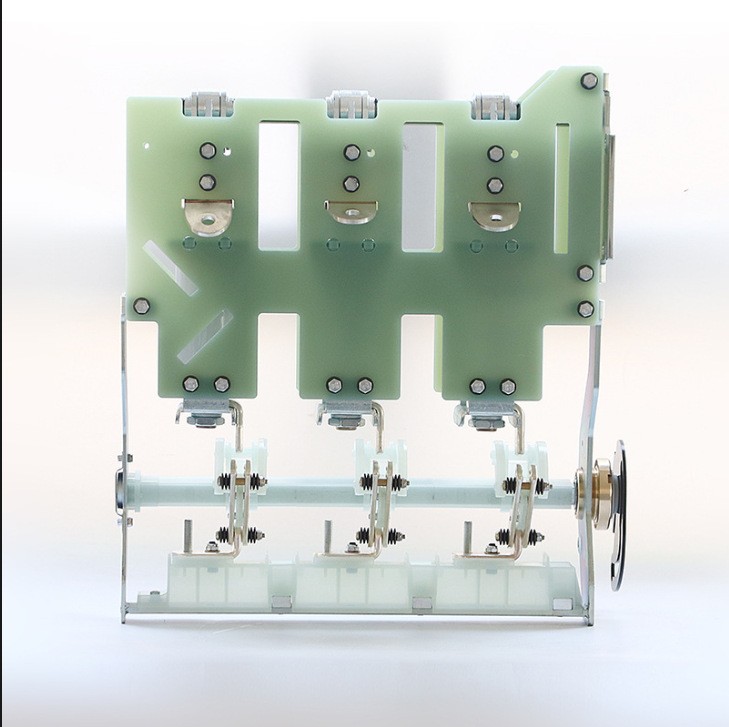

  3. High-Voltage Busbar Insulators: Custom-shaped multi-conductor support blocks and split-clamp brackets to securely anchor electrical busbars within switchgear cabinets.

  4. Precision Industrial Tooling: Insulated guide rails, machine-tool spacer components, wear plates, and heat-resistant structural shields inside industrial automation setups.

  📩 Request a Custom Wholesale Quote & Engineering Review

  Looking for a certified Chinese manufacturer to optimize your testing fixture production or lower your bulk material sourcing costs?

  📩 Contact SJ CNC Insulation today! Submit your required material thickness, volume needs, or custom CAD layouts to receive a comprehensive, direct-factory B2B quotation within 24 hours.
