💡 Industry-Standard FR4 CCL Materials for Rigid PCBs

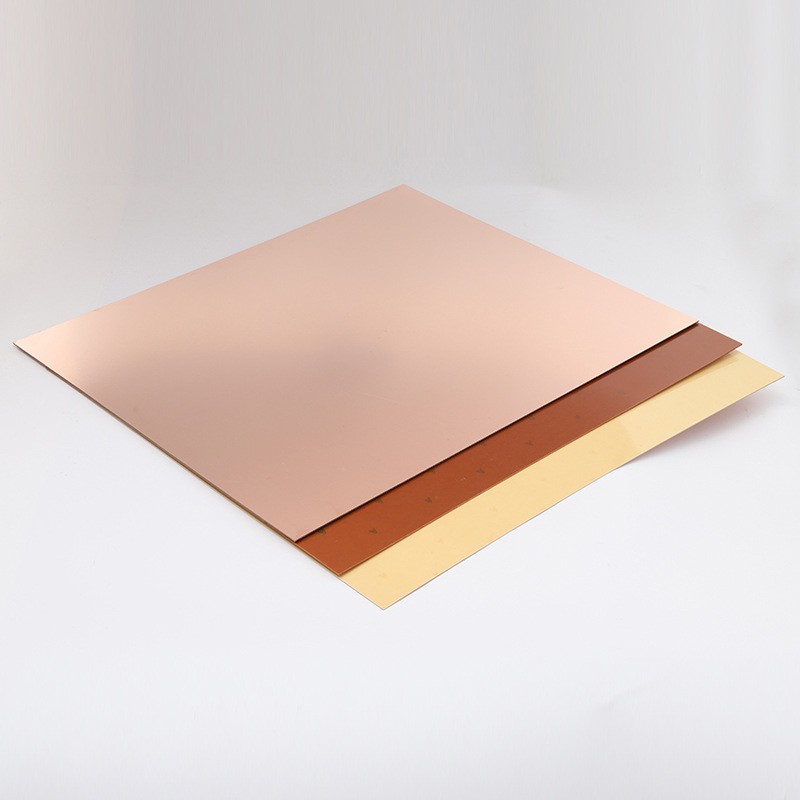

Our Copper Clad Laminate (CCL) FR4 is a high-performance rigid laminating material composed of woven fiberglass cloth impregnated with a flame-retardant epoxy resin binder, clad with premium copper foil on one or both sides under high temperature and pressure.

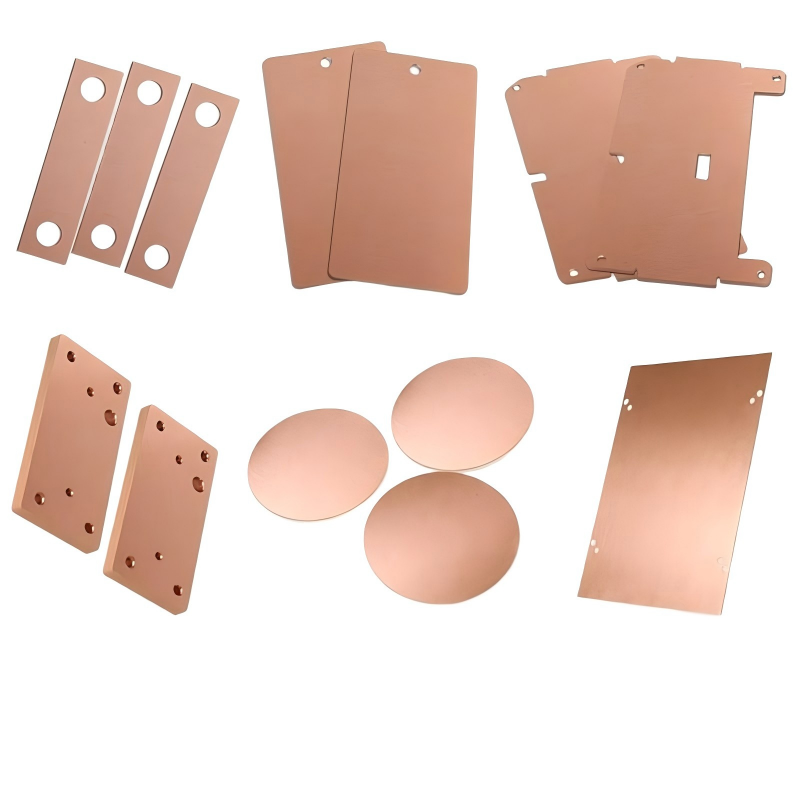

As a leading wholesale supplier, Wuxi Shangjue Technology offers comprehensive customization for board thicknesses, heavy copper layers, and precision CNC fabrication (routing, drilling, and scoring) based on your custom Gerber files or structural drawings.

🛠️ Section 1: Standard Grades & Technical Classifications

To help our international procurement partners select the exact material specifications, we categorize our FR4 material for PCB according to international IPC-4101 and NEMA thermal performance standards:

• Standard Tg FR4 (Tg 130°C – 140°C): Ideal for cost-sensitive, standard consumer electronics and low-layer counts operating under regular ambient temperatures.

• Mid Tg FR4 (Tg 150°C): Perfect for general industrial controls and power supplies that require enhanced thermal endurance.

• High Tg FR4 (Tg ≥170°C up to 180°C+): Engineered for lead-free assembly (RoHS compliant), automotive under-the-hood electronics, multi-layer PCBs, and high-temperature working environments. Offers superior resistance to delamination and thermal shock.

• Low Df / Low Dk Variants: Available upon request for high-speed digital computing and server backplanes to maintain signal integrity at high test frequencies (1GHz+).

• 🌟 Section 2: Core Performance Features & Advantages

  • Exceptional Dielectric & Electrical Insulation: Features high volume and surface resistivity with a stable Dielectric Constant (Dk 4.2–4.8 at 1GHz) to eliminate electrical leakage and cross-talk between dense circuits.

  • High Mechanical Strength & Flatness: The heavy-duty woven fiberglass skeleton provides elite flexural strength and rigidity, keeping warp and twist to an absolute minimum even during rigorous multi-layer thermal pressing.

  • Elite Heat & Moisture Resistance: Boasts an ultra-low water absorption rate (≤0.10%), meaning the laminate retains its high dielectric strength and structural dimensions in ultra-humid environments.

  • Superior Flame Retardancy: Fully certified to meet UL94 V-0 standards, guaranteeing self-extinguishing safety safety properties for high-end electronics.

  • Low Thermal Conductivity & Great Machinability: Excellent for processing via V-scoring, CNC drilling, laser routing, and punching without any resin-smear or delamination.

    1. Consumer Electronics: Motherboards for smartphones, laptops, tablets, smart speakers, digital cameras, and electronic gaming consoles.

    2. Computers & High-Speed Servers: Desktop motherboards, heavy-duty graphics cards (GPUs), RAM modules, and enterprise server backplanes.

    3. Industrial Controls & Instrumentation: PLCs (Programmable Logic Controllers), power inverters, medical test instruments, and industrial diagnostic equipment requiring long-term reliability.

    4. Automotive Electronics (Body & Control Systems): Car audio systems, window/seat control modules, and dashboard electronics.

    5. Telecom & Networking Equipment: Routers, network switches, and power management/logic control boards inside telecom base stations.

    6. LED Lighting & Switch-Mode Power Supplies (SMPS): AC-to-DC power adapters, power drivers, and intermediate distribution circuit boards.

       📊 Section 3: Product Specifications & Customization Limits

       We stock full-size master sheets and offer precision cutting/machining services to deliver ready-to-process blanks.

       Specification Parameter	Standard Range & Options	Compliance / Note
       Laminate Base Material	NEMA FR4 Grade / 3240 Epoxy Glass	IPC-4101 Certified
       Copper Clad Options	Single-Sided (1L) / Double-Sided (2L)	High-purity Electrolytic Copper
       Custom Board Thickness	0.1mm, 0.25mm, 0.4mm, 0.6mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm, 1.6mm, 2.0mm, 3.0mm	Ultrathin to Thick-Rigid Options
       Heavy Copper Foil Thickness	12 µm (0.35 oz), 18 µm (0.5 oz), 35 µm (1.0 oz), up to customized thick copper	Crucial for high-current power PCBs
       Standard Base Sizes	1.5mm thickness standard base / Customizable cut-to-size formats	Tailored to fit your PCB panelization



       🎯 Section 4: Global Industrial Applications

       Our FR4 laminate for PCB manufacturing serves as the backbone across massive global industries:

  • Section 5: Secure Export Packaging & Logistics

    We understand that precision copper clad laminates must be protected from humidity and physical bending during ocean freight.

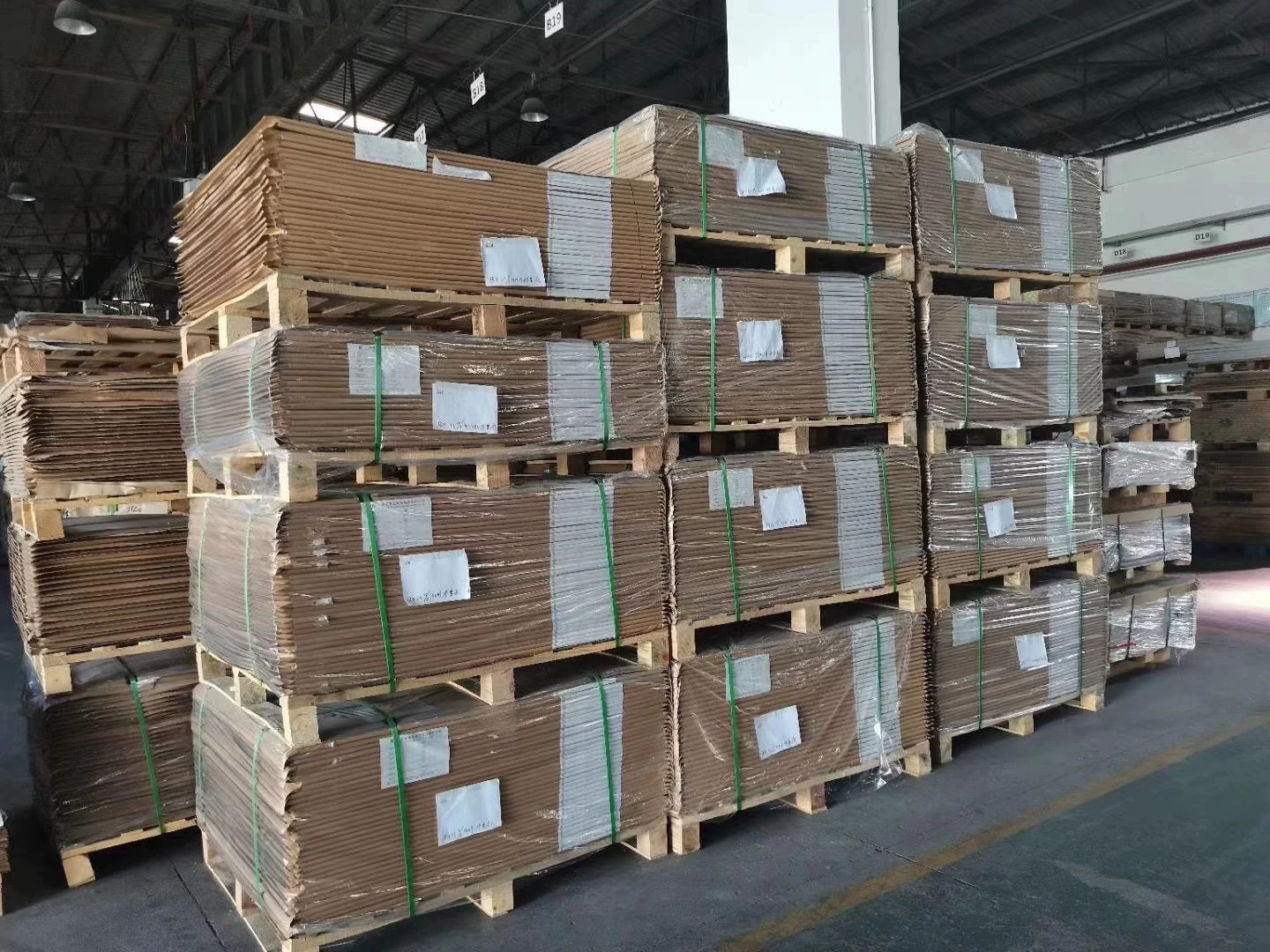

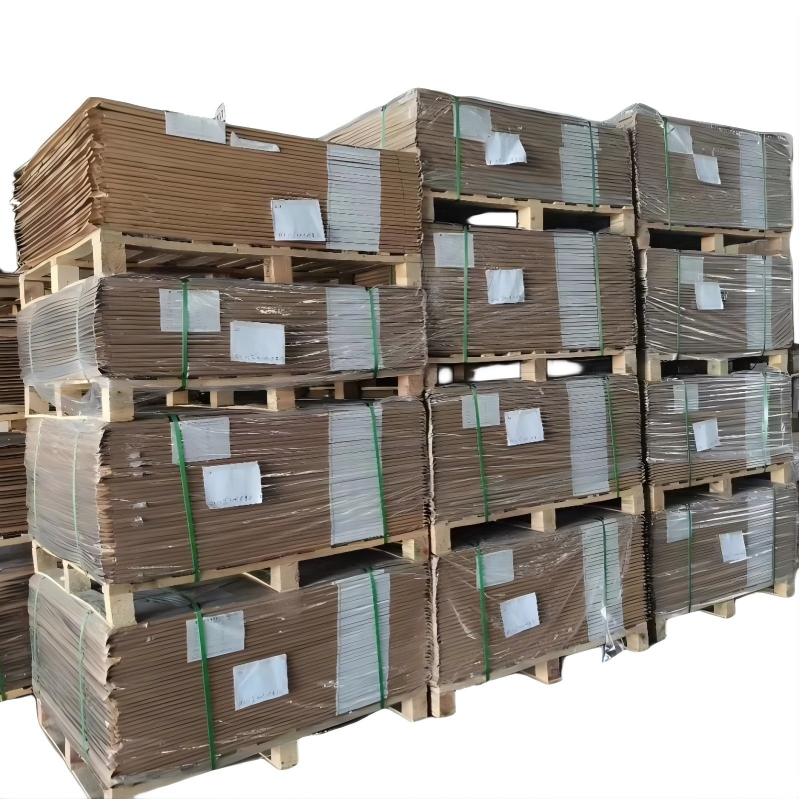

    • Large Size Panels: Safely stacked and strapped on reinforced export pallets with moisture-barrier vacuum wrapping.

    • Small/Pre-Cut Sizes: Packaged in heavy-duty corrugated cartons with shock-absorbing foam padding.

  •

    📩

    Request a B2B Wholesale Quote

    Whether you need raw full-size Copper Clad Laminates (CCL) FR4 panels or custom CNC cut blank substrates for prototyping, Wuxi Shangjue Technology offers the ultimate cost-to-performance ratio.

    📧 Contact us today with your thickness, copper foil specifications, and volume requirements to receive a fast wholesale quote within 24 hours!
