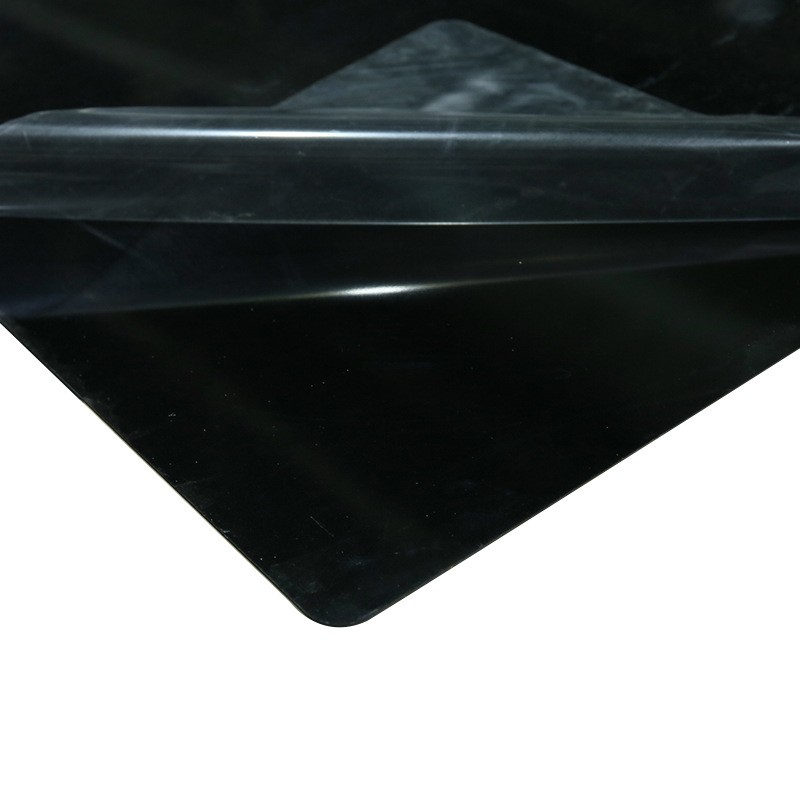

Black FR4 G10 glass fiber sheet is suitable for solar photovoltaic and unmanned aerial vehicles.
Specifications: 1040mm x 1220mm, 1090mm x 1240mm. Custom sizes available.
High dielectric and mechanical properties
High-temperature resistance
Corrosion resistance
Low water absorption
Resistant to deformation
Flame retardancy rating up to UL94-V0
The black FR4/G10 epoxy board is made of electronic glass cloth and epoxy phenolic resin. The reinforcing material, electronic glass cloth, is pre-impregnated in the resin and then hot-pressed into a board at high temperature. Glass transition temperature: 150℃; dielectric loss tangent: 0.035°; minimum breakdown voltage: 60kV; maximum moisture absorption: 0.08%.
What types of epoxy resin boards does SJ Company offer?
These materials include FR-4, FR-5, G10, G11, and 3240, with FR-4 being the most commonly used. Based on whether they contain halogen elements, they can be divided into halogenated epoxy boards and halogen-free epoxy boards. Halogen-free FR-4 is yellow, while halogenated FR-4 comes in black, light green, and yellow.

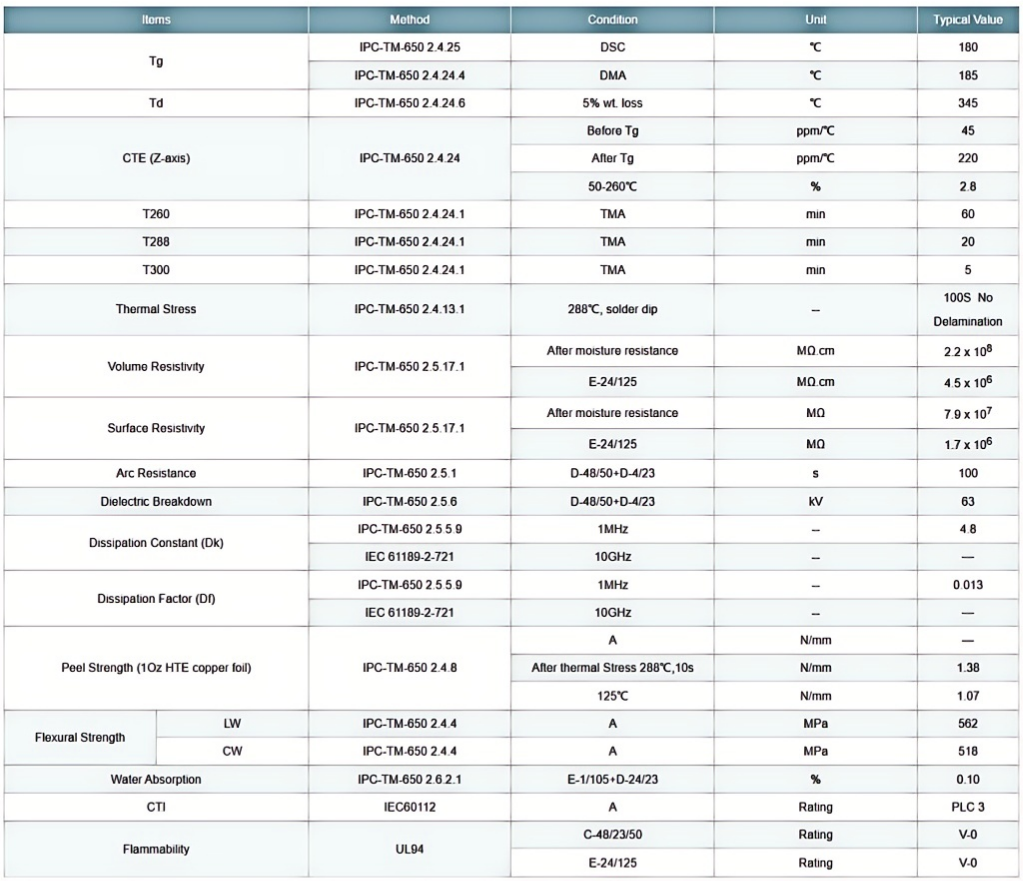

Performance:
| Serial number | Inspection items | Unit | Inspection results | Standard | Method | |
| 1 | Vertical laminate bending strength | MPa | Normal | 562 | The bending strength retention rate at 180°C is not less than 50%. | IPC-TM-650 |
| 180℃ | 341 | |||||
| 2 | Vertical laminate electrical strength (in 90°C oil). | KV/mm | 14.4 | ≥13 | GB/T1408.1-2006 | |
| 3 | Parallel layer breakdown voltage (in 90°C oil). | KV | 41.3 | ≥35 | GB/T1408.1-2006 | |
| 4 | Insulation resistance after immersion | MΩ | 1.7×107 | ≥5×104 | GB/T10064-2006 | |
| 5 | Dielectric constant (1MH8). | ／ | 4.29 | ≤5.5 | GB/T1303.2-2009 | |
| 6 | Dielectric loss factors (1 MH2). | ／ | 0.008 | ≤0.04 | GB/T1303.2-2009 | |
| 7 | Water absorption | mg | 11.7 | ≤19 | GB/T1034-2008 | |
| 8 | Tg (DSC method). | ℃ | 198.9 | ／ | IPC-TM-650 | |

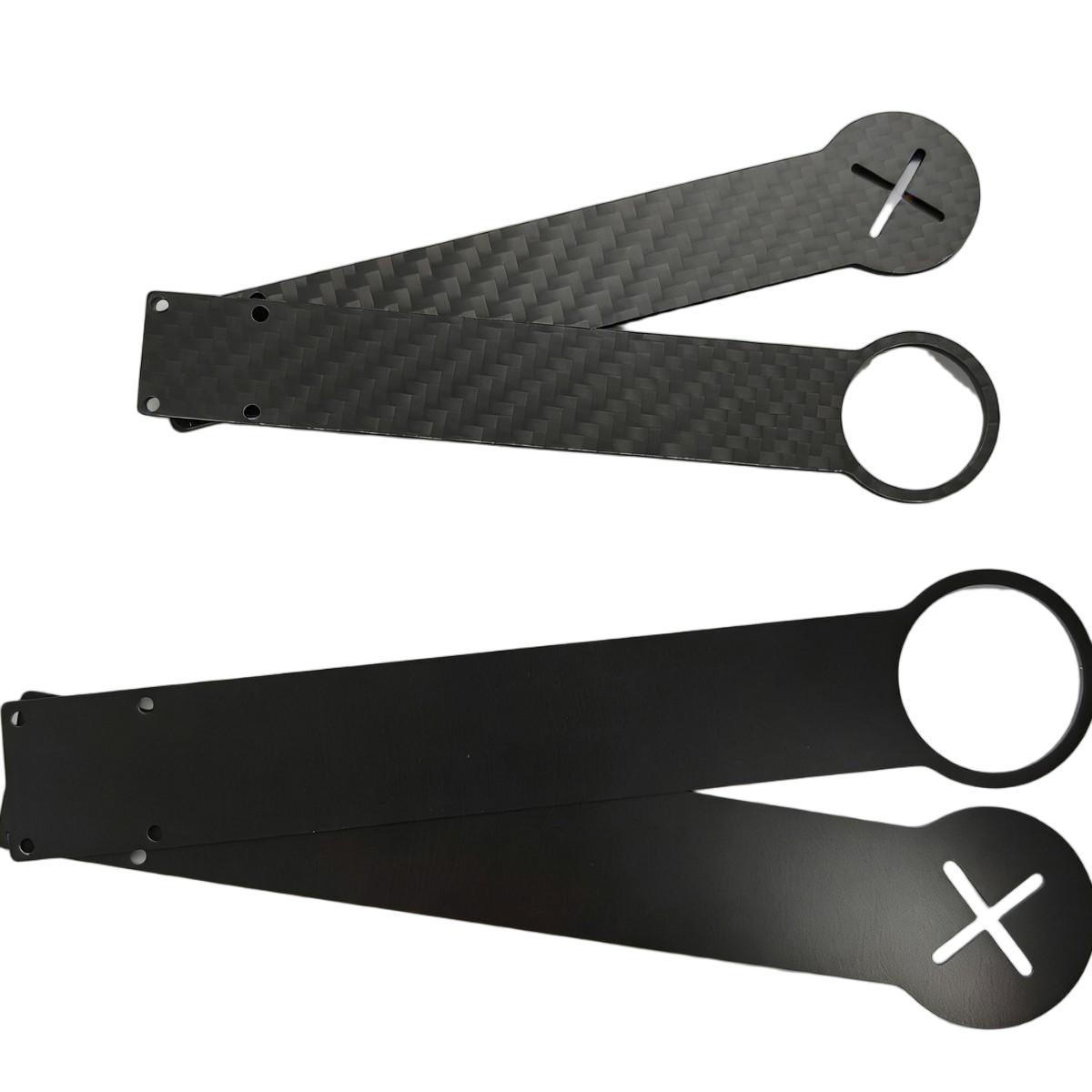

Product applications: Used as insulating support rods and partitions for equipment, insulating pads, transformer insulating boards, grinding gears, precision test boards, solar substrates, photovoltaic industry, new energy batteries, and protective pads for drones and robots.
Get in Touch with Us
Contact us for insulation materials, engineering plastics, or drawing-based custom machining services.
Our team is ready to provide technical advice and fast quotations to support your project.
