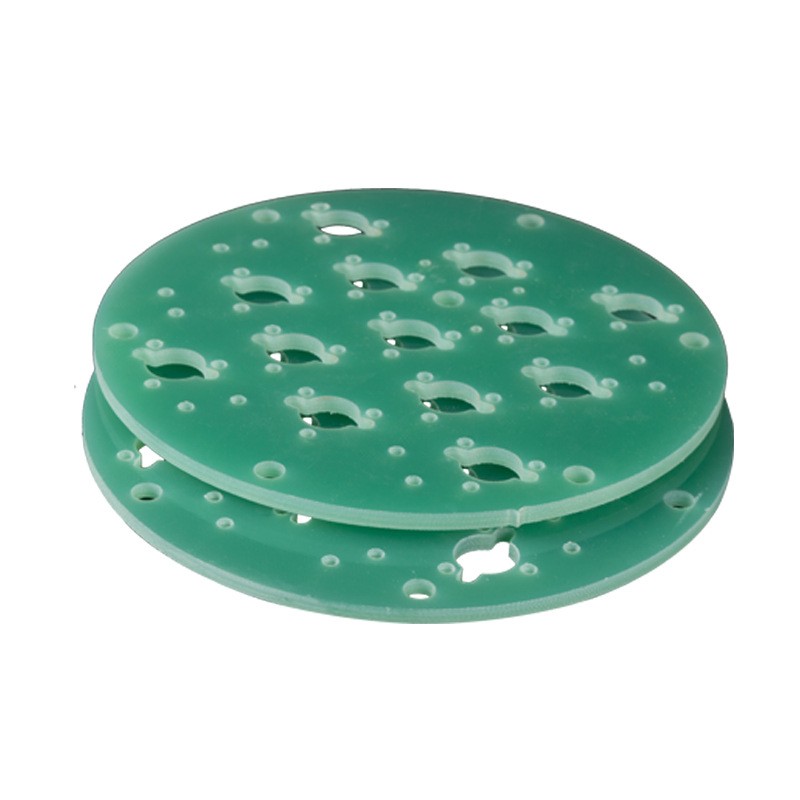

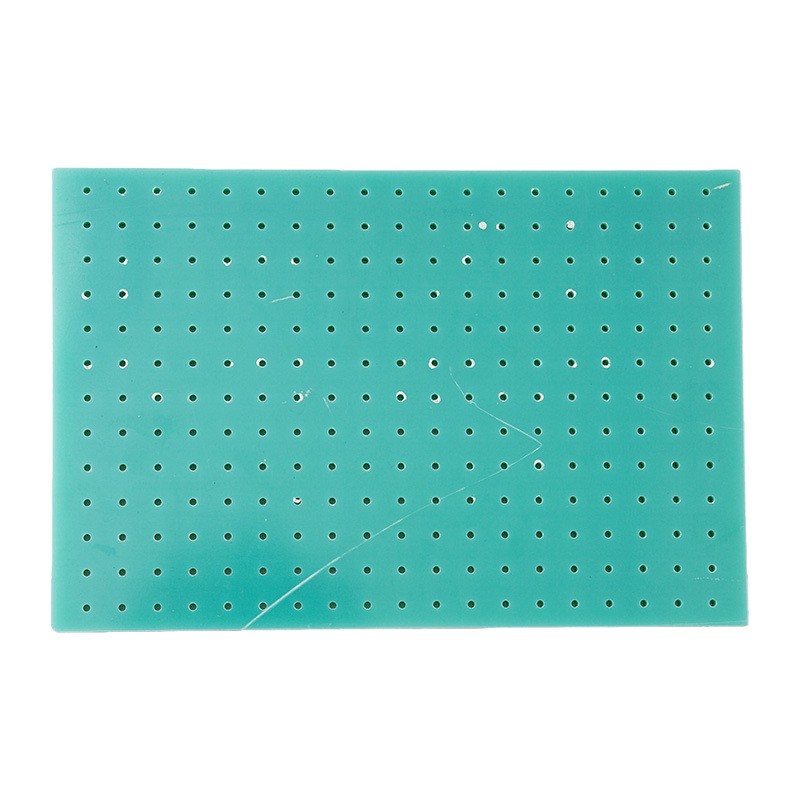

FR4 fiberglass board is a high-performance insulating material composed of epoxy resin and woven fiberglass cloth. It is widely used in printed circuit board (PCB) manufacturing and electrical insulation applications.

Due to the high hardness and abrasive nature of FR4 material, specialized drilling techniques are required to achieve high-precision machining and extend tool life. The following outlines the key processes and best practices for drilling FR4.

Key technologies for FR4 drilling：

1. Drill bit selection

• Selecting the right drill bit is crucial for achieving precision and efficiency:

  Carbide drill bits (Recommended)
  High hardness and wear resistance make carbide tools an ideal choice for machining FR4.
  Tungsten carbide or diamond-coated drill bits
  These can significantly reduce tool wear and extend service life.
  Optimized drill geometry
  A point angle of 118°–135° is recommended to reduce cutting forces and heat buildup.

2. Optimize drilling parameters

• Proper parameter control ensures quality and efficiency:

  Spindle speed: 8,000 – 12,000 rpm
  (Too high → overheating; too low → low efficiency)
  Feed rate: 0.05 – 0.15 mm/rev
  (Too fast → tool breakage; too slow → low production efficiency)
  Cooling method:
  Use compressed air or coolant to lower the temperature and prevent resin adhesion.

3. Preparation before processing

• Securely Fastened:
  Use vacuum suction cups or specialized clamps to prevent movement.
  Surface Cleaning:
  Remove dust and debris to ensure drilling accuracy.

4. Drilling operation control

• High-precision positioning:
  CNC machining or laser positioning ensures hole accuracy within ±0.1 mm.
  Vertical drilling:
  Maintain vertical alignment to prevent hole deviation and burrs.
  Chip removal:
  Use air-blast or vacuum systems to prevent chip accumulation.

5. Post-processing

• Deburring:
  Sand the edges of the hole using fine sandpaper or specialized tools.
  Quality Inspection:
  Check the hole diameter and perpendicularity using gauges or a microscope.

6. Safety and Maintenance

• Operator Protection:
  Wear a mask and safety goggles to avoid inhaling fiberglass dust.
  Tool Maintenance:
  Regularly inspect and replace worn drill bits.
  Environmental Control:
  Keep the processing area dry to maintain material stability.

Why choose our FR4 drilling service?

✔ High-precision CNC drilling (tolerance ±0.1 mm)
✔ Professional cutting tools (carbide and diamond-coated drill bits)
✔ Optimized machining parameters for extended tool life
✔ Rigorous quality inspection process
✔ Custom machining based on drawings

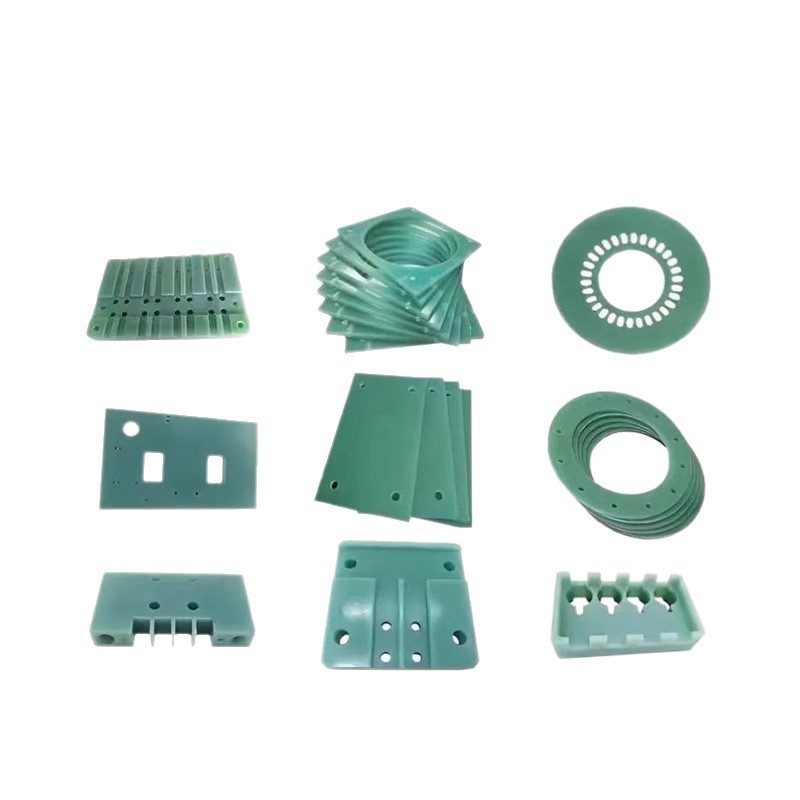

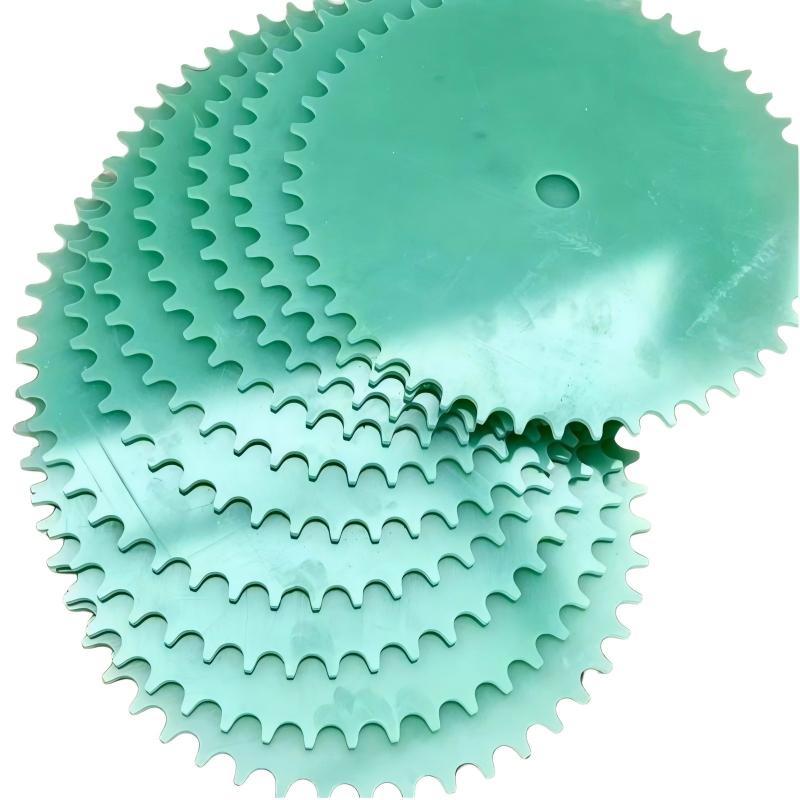

Our FR4 drilling services are widely used in:
