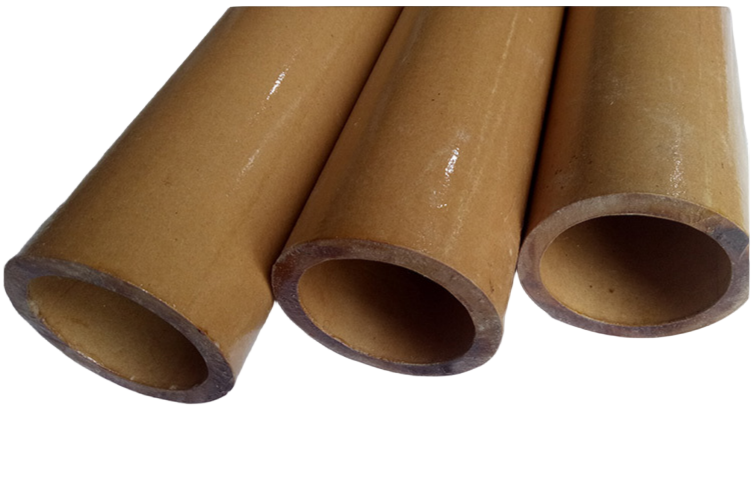

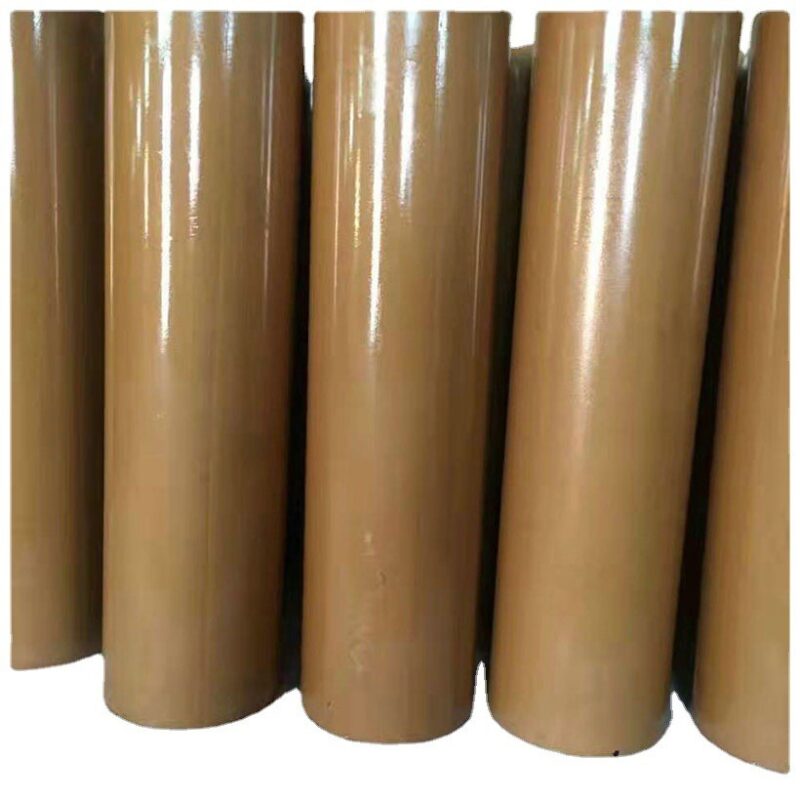

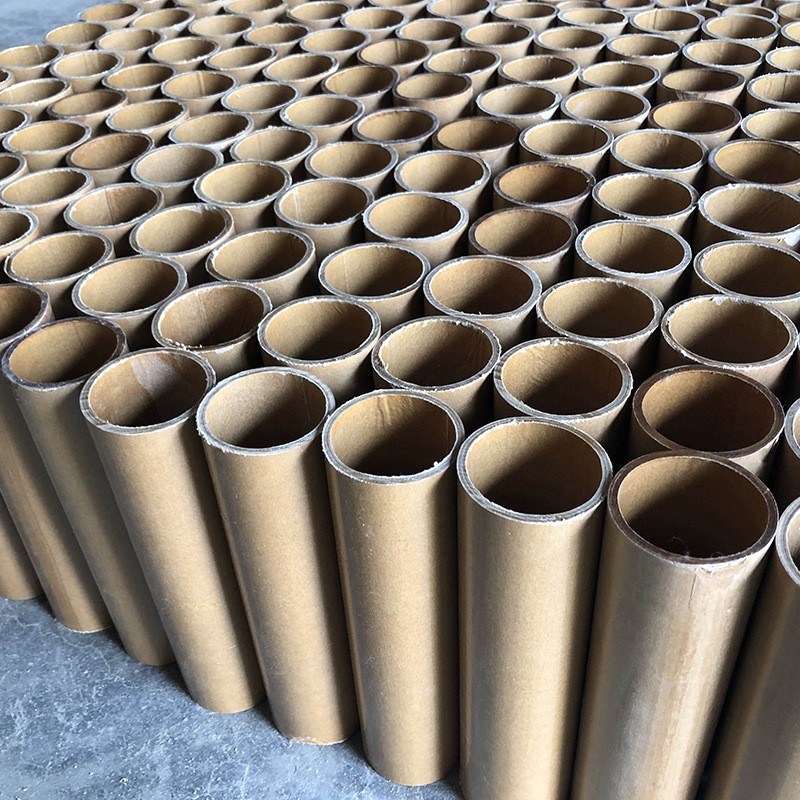

3520 Phenolic Laminated Paper Tube（PFCP21）
3520 Phenolic Laminated Paper Tube;
Specifications: Inner diameter minimum 15-500mm;
Wall thickness: 3mm-30mm
Product Introduction: 3520 phenolic composite paper tube is a thermosetting phenolic composite paper tube made of insulating paper roll as base material and phenolic resin as adhesive, which is cured by hot rolling and baking.
Product Application: (Standard: JB/T3172-1999)
• Transformer: Used as a structural component such as an insulation frame, support, and bushing, especially suitable for the interior of oil-immersed transformers. <sup>13</sup>
• Electric motors and generators: Used for winding insulation, slot wedges, lead supports, and other insulation structures. <sup>26</sup>
• High-voltage switchgear: used as insulating partitions, support rods, or bushing assemblies. <sup>15</sup>
Capacitors and transformers: used as internal insulating isolation elements. <sup>13</sup>
• Power testing equipment: such as high-voltage test benches, phase comparators and other supporting insulation components.
|
Serial Number
|
Indicator Name
|
unit
|
Index value
|
|||
|
3520
|
3526
|
|||||
|
Inner diameter 5-25 mm
|
Inner diameter 25 mm or more
|
|||||
|
1
|
appearance
|
——
|
The surface is smooth, free of bubbles, wrinkles, cracks, obvious wear and overheating marks, and the end face is neatly cut.
|
|||
|
2
|
Water absorption rate
|
%
|
10-3
|
——
|
≤4
|
|
|
3
|
density
|
克/立方厘米
|
≥1.03
|
≥1.10
|
≥1.20
|
|
|
4
|
Thermal stability (24 hours)
|
℃
|
120
|
120
|
130
|
|
|
5
|
Bending strength
|
Megapascal
|
≥50
|
≥60
|
≥80
|
|
|
6
|
compressive strength
|
Megapascal
|
≥50
|
≥60
|
≥140 (axial)
|
|
|
7
|
Dielectric loss factor (50Hz)
|
——
|
≤0.03
|
≤0.03
|
||
|
8
|
Vertical layer withstand voltage (5 minutes in transformer oil at 90±2°C)
|
1.5-2.5 mm
|
MV/m
|
≥8.5
|
≥8.5
|
≥14
|
|
2.51-3.5 mm
|
≥8.0
|
≥8.0
|
≥12
|
|||
|
3.5-4.5 mm
|
≥7.0
|
≥7.0
|
≥8
|
|||
|
4.5-6 mm
|
≥6.5
|
≥6.5
|
≥6
|
|||
|
9
|
Parallel layer withstand voltage (90±2℃ transformer oil, for 5 minutes)
|
KV
|
20
|
25
|
||
|
10
|
Surface withstand voltage (after being exposed to normal air for 1 minute after being exposed to moisture).
|
KV
|
12
|
12
|
||
Our core strengths

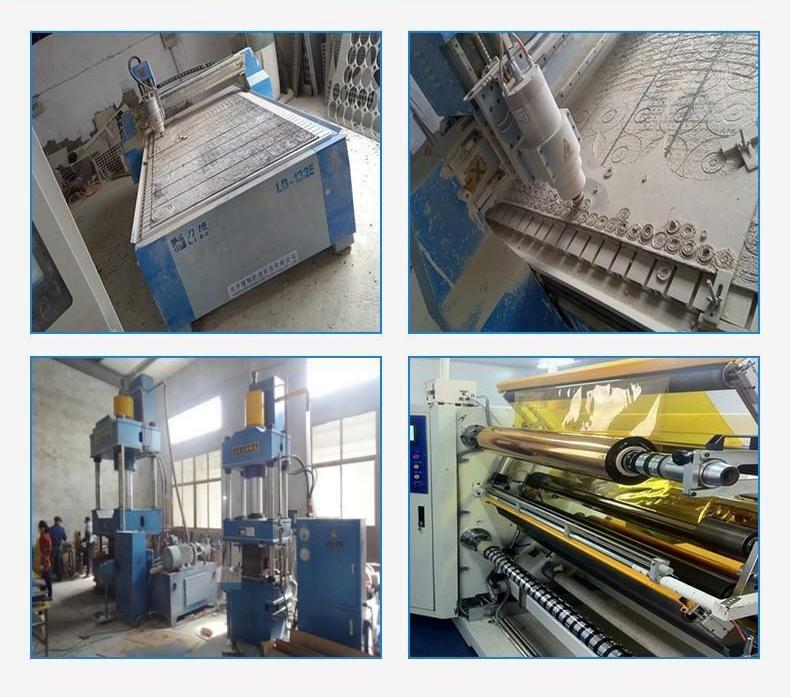

✔ Over 20 years of processing experience – Experienced technicians ensure precision and consistency
