Phenolic Board vs FR4 Sheet: What’s the Difference?

Phenolic boards (commonly known as Bakelite sheets) and FR4 sheets are two of the most widely used electrical insulation materials in industrial applications. Although both are commonly used for electrical insulation and machining components, their material composition, mechanical properties, heat resistance, and application fields are significantly different.

Understanding these differences helps engineers and buyers select the right material based on performance requirements, environmental conditions, and budget.

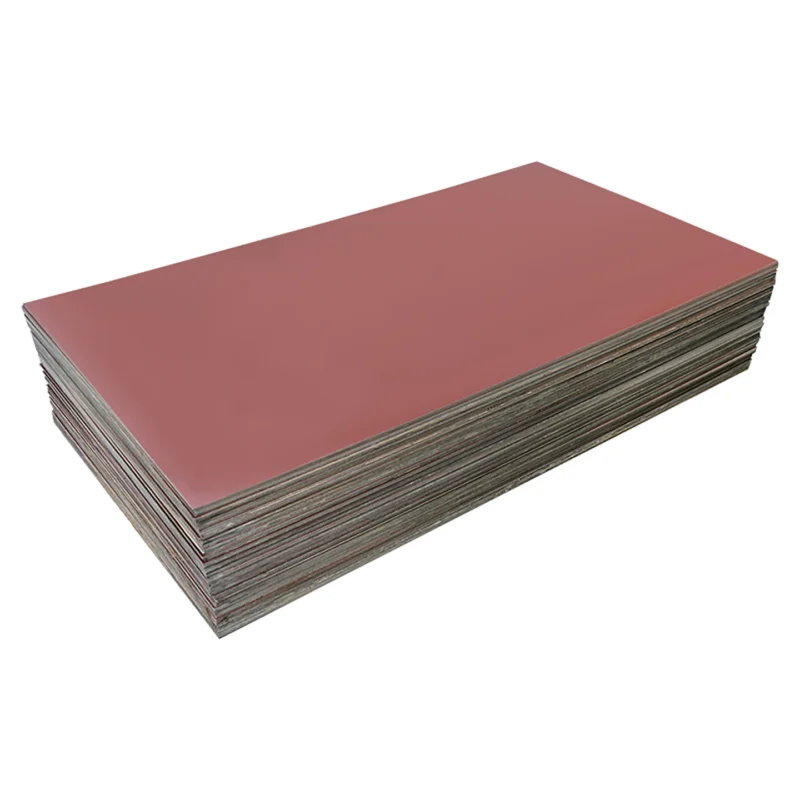

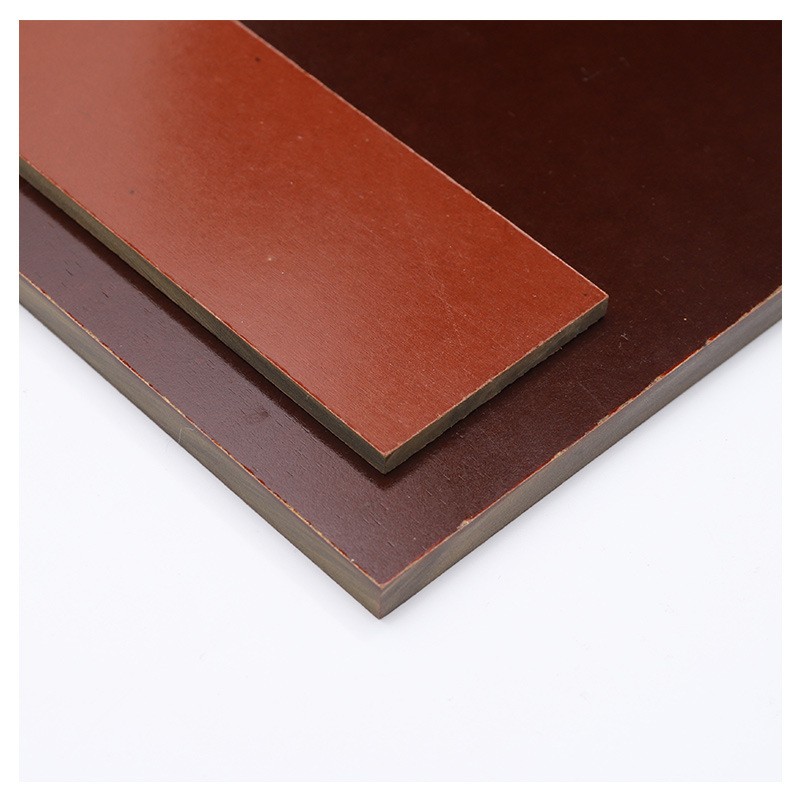

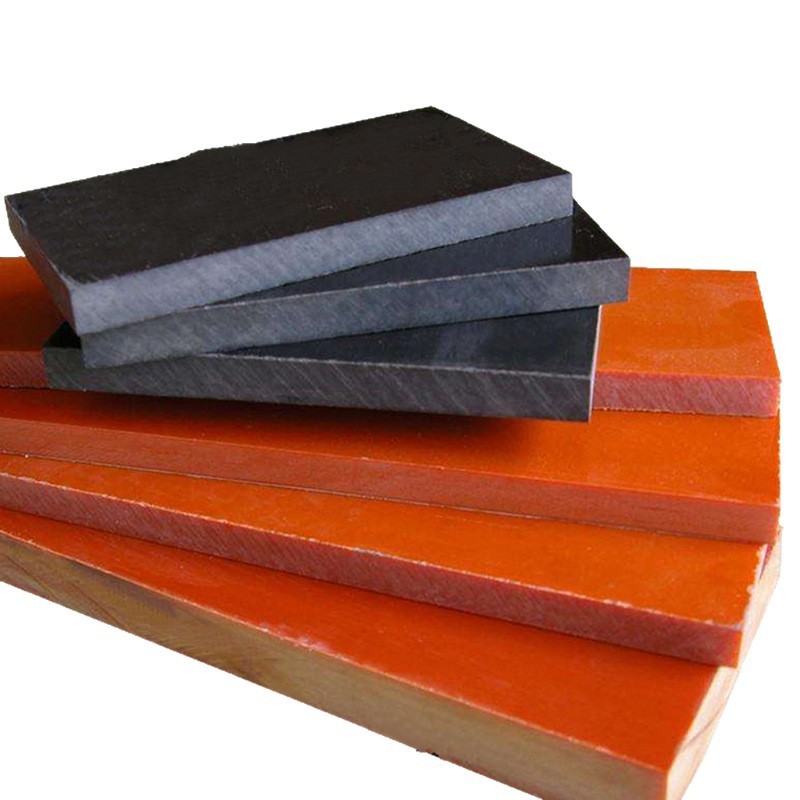

✅ What is Phenolic Board?

Phenolic board is manufactured by impregnating insulating paper or cotton paper with phenolic resin and compressing it under heat and pressure.

Main Characteristics:

Economical and cost-effective
Excellent machinability
Good electrical insulation at room temperature
Suitable for transformer oil applications

Common Colors:

Brown
Black
Yellow

✅ What is FR4 Sheet?

FR4 sheet is made from woven fiberglass cloth impregnated with epoxy resin and laminated under high temperature and pressure.

FR4 is well known for:

High mechanical strength
Excellent flame retardancy (UL94 V-0)
Low water absorption
Superior dimensional stability

Common Colors:

Green
Yellow
White
Black

✅ Phenolic Board vs FR4 Sheet Comparison

Comparison Item	Phenolic Board (Bakelite)	FR4 Epoxy Glass Sheet
Base Material	Paper / Cotton Paper	Fiberglass Cloth
Resin Type	Phenolic Resin	Epoxy Resin
Mechanical Strength	Good	Excellent
Heat Resistance	Approx. 140°C	150–170°C
Water Absorption	<1.5%	<0.2–0.5%
Flame Retardancy	UL94 HB	UL94 V-0
Density	~1.45 g/cm³	1.9–2.1 g/cm³
Machinability	Excellent	Good
Cost	Lower	Higher
Surface Appearance	Matte paper texture	Visible fiberglass weave

✅ Key Advantages of Phenolic Board

✔ Lower Cost

Phenolic sheets are more economical and suitable for large-volume industrial applications.

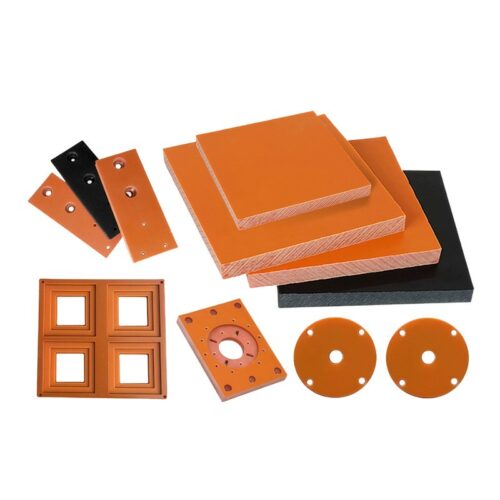

✔ Easy CNC Machining

Soft material structure reduces tool wear and improves processing efficiency.

✔ Good Electrical Insulation

Provides reliable insulation performance under normal operating conditions.

✅ Key Advantages of FR4 Sheet

✔ Superior Mechanical Strength

Excellent impact resistance and dimensional stability.

✔ Better Heat Resistance

Suitable for high-temperature electrical environments.

✔ Excellent Moisture Resistance

Low water absorption ensures stable electrical performance in humid conditions.

✔ Flame Retardant Performance

Self-extinguishing material compliant with UL94 V-0 standards.

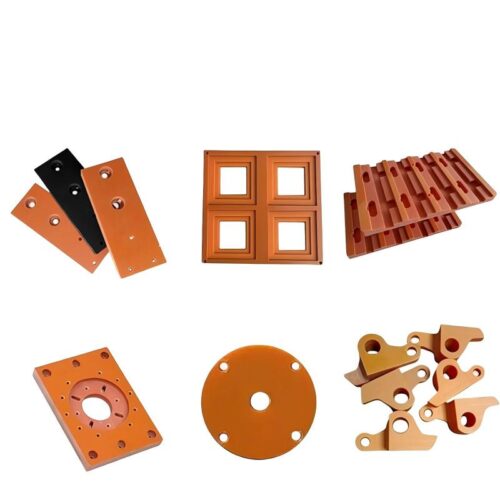

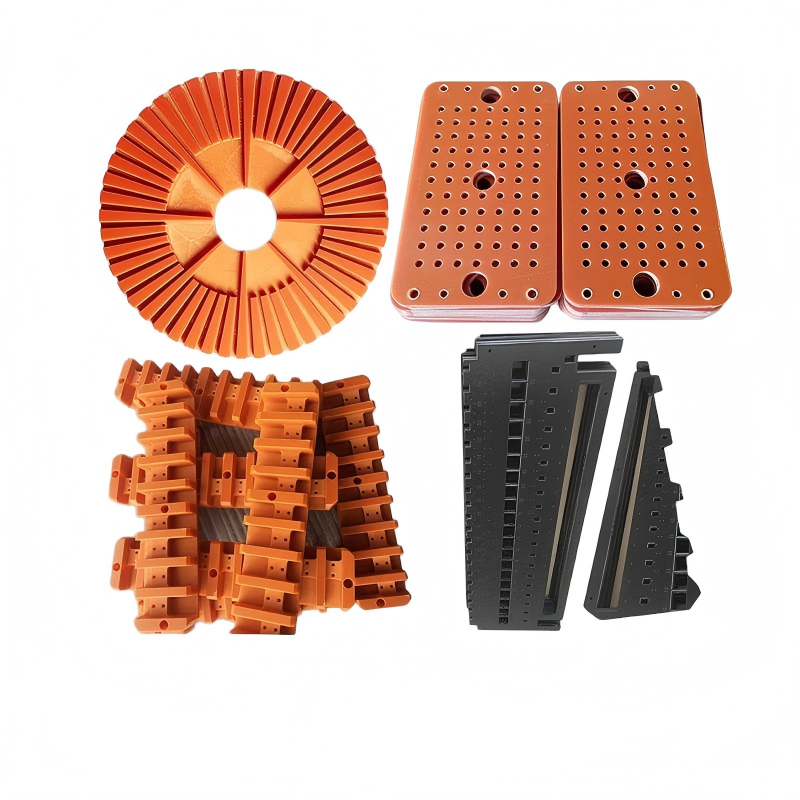

✅ Applications of Phenolic Board

Phenolic boards are commonly used in:

PCB drilling backup boards
ICT / testing fixtures
Mold clamping plates
Electrical distribution boxes
Transformer insulation parts
Industrial tooling and jigs

✅ Applications of FR4 Sheet

FR4 sheets are widely used in:

High-voltage insulation structures
Switchgear systems
Transformer components
SMT fixture platforms
PCB reinforcement boards
Renewable energy equipment

✅ How to Choose Between Phenolic Board and FR4?

Choose FR4 If:

High heat resistance is required
Flame retardancy is critical
The environment is humid or outdoor
High mechanical strength is necessary

Choose Phenolic Board If:

Budget is the main concern
Operating conditions are moderate
Easy machining is important
Large-volume production is needed

✅ Why Choose SJ TECH?

At SJ TECH, we provide both phenolic laminate sheets and FR4 epoxy fiberglass sheets with custom CNC machining services for industrial applications.
