Product Introduction: Polyimide film F46 tape is made by coating one or both sides of polyimide film (6051) with F46 adhesive, followed by drying and slitting. This tape is suitable for use as H-class insulation material for electrical wires, and it melts and solidifies at 350-380°C for half a minute.

Product Performance: Excellent high and low temperature resistance, electrical insulation, adhesion, radiation resistance, and dielectric resistance. It can be used for extended periods in a temperature range from -269°C to +400°C. It also has high-temperature self-sealing properties.

Applications: It can be used as a substrate for high-temperature resistant flexible printed circuits, flat circuits, insulation layers for wires and cables, and magnet wires, as well as insulation for various motors.

Technical parameters:

Serial number	Performance metrics		unit	Indicator Value (TY6051)
Serial number	Performance metrics		unit	0.033mm	0.038mm	0.050mm
1	Tolerances allowed		mm	±0.005	±0.005	±0.005
2	Tensile strength		Mpa	≥78	≥78	≥78
3	Elongation at break		%	≥30	≥30	≥30
4	Peel force	(double-sided) rubber surface – rubber surface Rubber surface – copper (single-sided) rubber surface – bottom surface Rubber surface – copper	N/10mm	≥3.5 ≥3.5 ≥3.5 ≥3.5	≥3.5 ≥3.5 ≥3.5 ≥3.5	≥3.5 ≥3.5 ≥3.5 ≥3.5
5	Electrical strength		MV/m	≥90	≥90	≥90
6	Surface resistivity 200°C		Ω	≥1.0X10¹²	≥1.0X10¹²	≥1.0X10¹²
7	Volumetric resistivity 200°C		Ω.m	≥1.0X10¹³	≥1.0X10¹³	≥1.0X10¹³

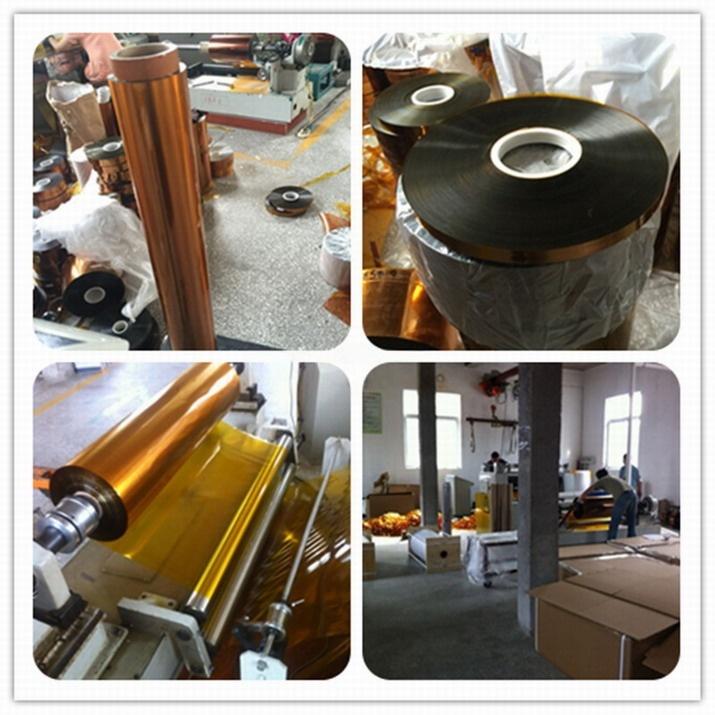

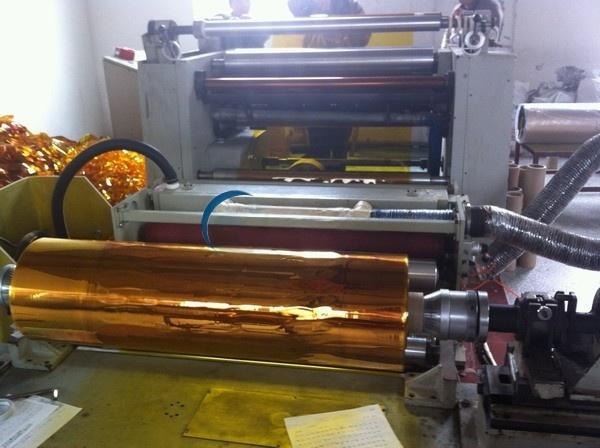

Our die-cutting equipment：

201906152346319287 If you are interested in our polyimide film products, please contact us via WhatsApp: +8615950409403, or info@sjcncinsulation.com. We will reply to you as soon as possible within 24 hours.

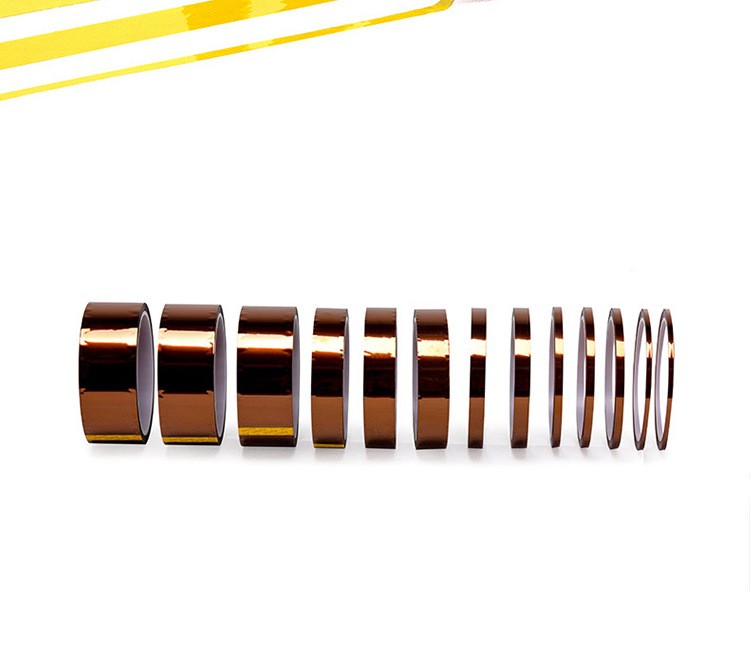

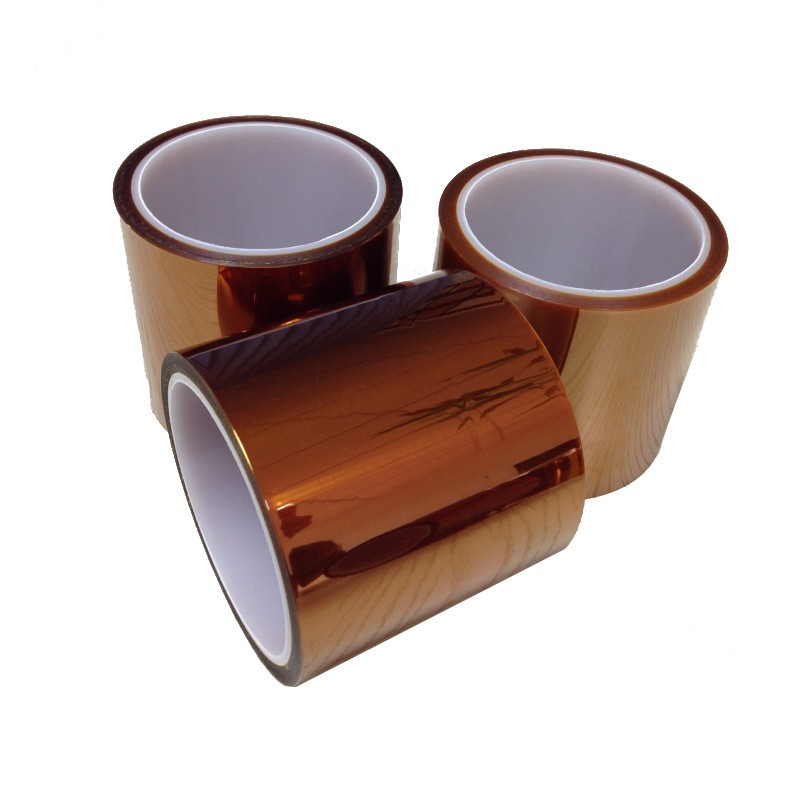

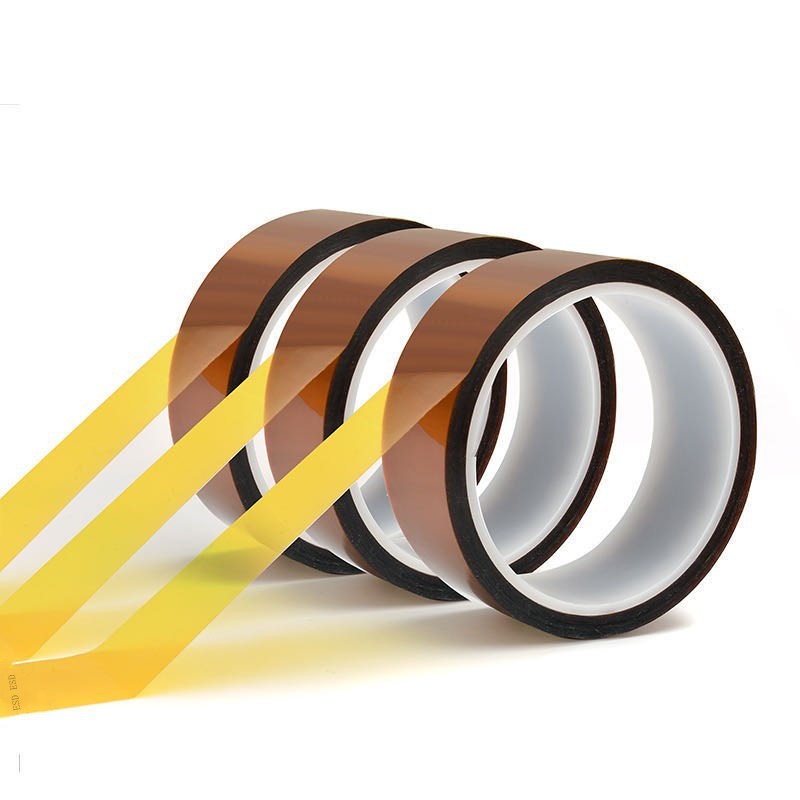

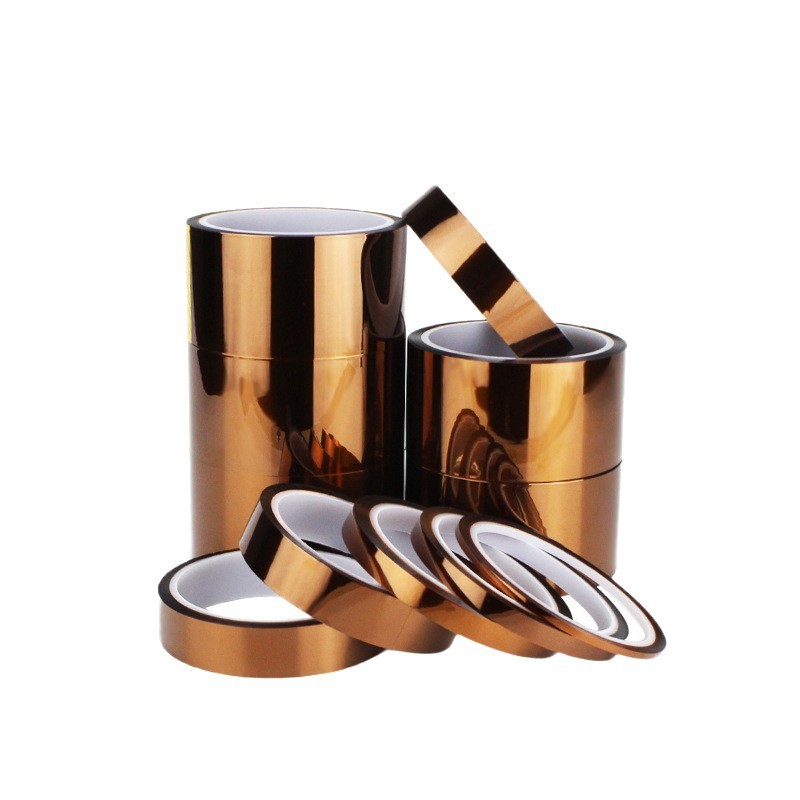

Polyimide film F46 tape
