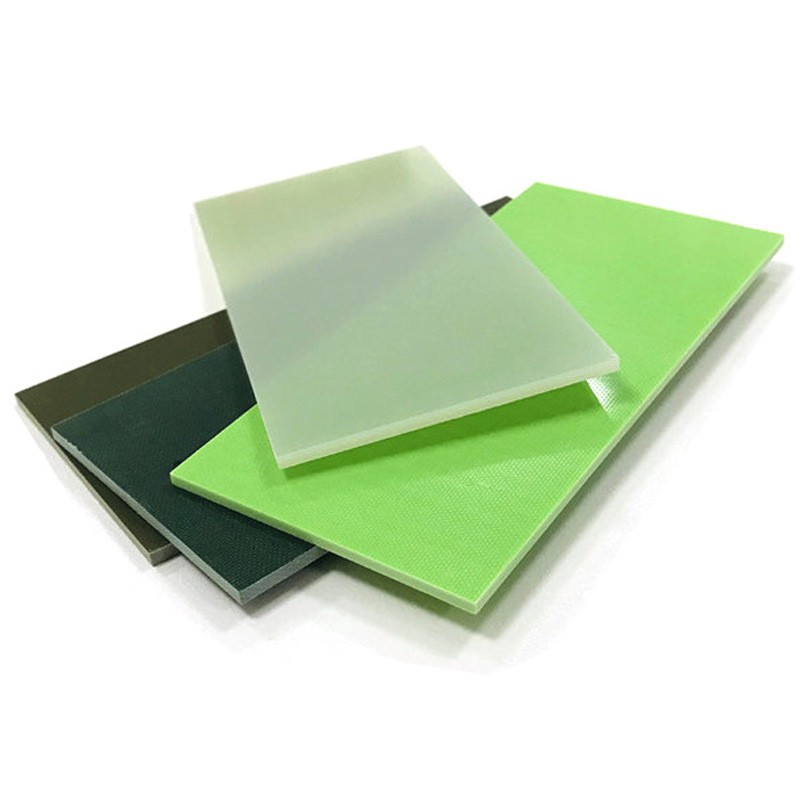

G10 fiberglass board

G10 fiberglass board is a high-strength glass fiber reinforced epoxy laminate widely used for electrical insulation and industrial applications. It offers excellent mechanical strength, electrical insulation, and dimensional stability, making it ideal for precision components and CNC machining.

Key Features:

Excellent electrical insulation performance
High mechanical strength and rigidity
Good heat resistance and dimensional stability
Low water absorption
Suitable for CNC machining and custom parts

Category: G10

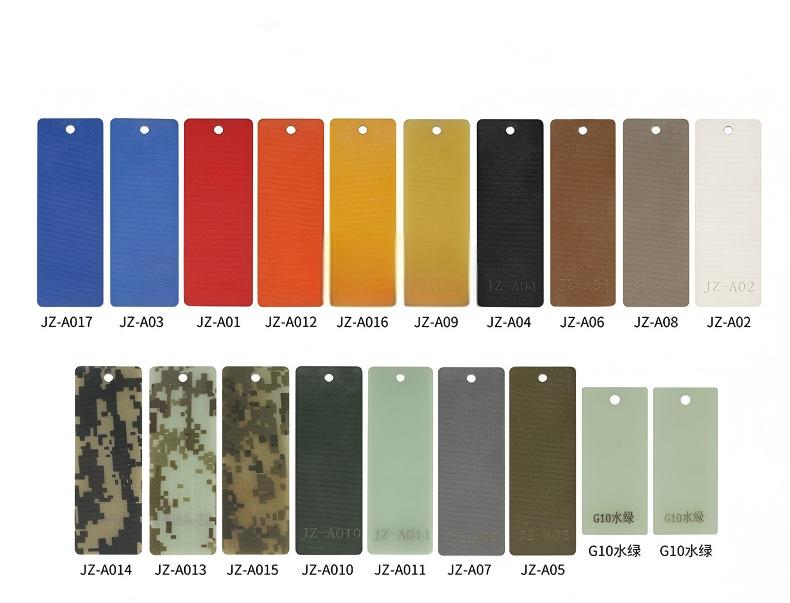

Color: Cyan, Red, Blue, Purple, Orange, Green, White, Black (customizable)
Size: 1020 × 2020 mm, 1220 × 2440 mm (custom processing available based on drawings or samples)
Thickness: 1–50 mm
Order: Flexible MOQ, samples available

Difference between G10 and FR4

Material Composition and Properties:
FR4 is a composite material made of epoxy resin reinforced with glass fiber. It features excellent electrical insulation and mechanical strength, making it suitable for printed circuit boards (PCBs). G10 is also a glass fiber and resin laminated material, but it is processed with special techniques to achieve higher mechanical strength and better chemical stability. It can maintain stable performance under extreme conditions such as high humidity or strong acids and alkalis.
Applications:
FR4 is mainly used in products requiring electronic insulation, such as FPC reinforcement boards, PCB drill pads, transformer insulation boards, and insulation structural components in motors and electrical equipment.

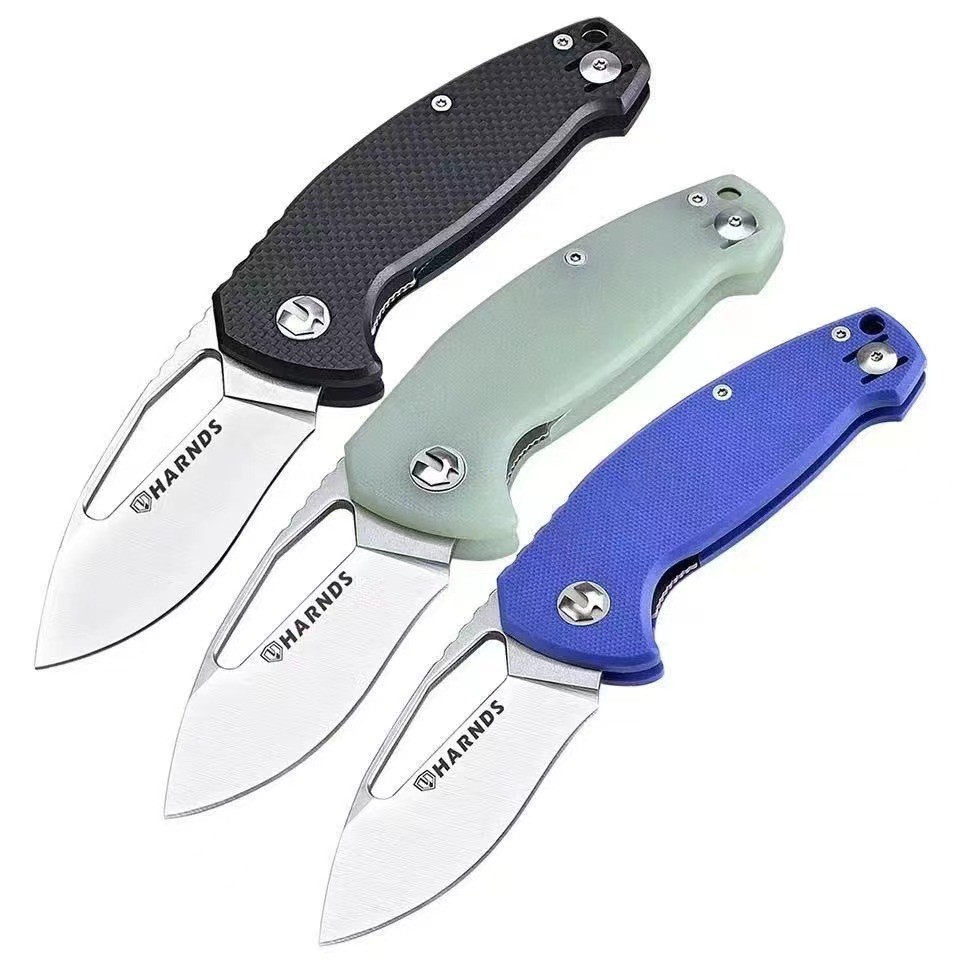

G10 is more suitable for outdoor electronic equipment, providing reliable insulation protection in harsh environments, such as for tools and tool handles.
Color and Appearance:
FR4 is available in various colors, such as yellow, white, black, and blue. G10 usually comes in black, red, blue, and green, with some types featuring dual-layer color effects.
Performance:
G10 has excellent insulation, corrosion resistance, and wear resistance. It is not easily penetrated by moisture or liquids and is relatively lightweight.
FR4 offers higher mechanical and dielectric properties, good heat and moisture resistance, and excellent machinability.

Technical Parameters

No.	Parameter	Unit	Value
01	Density	g/cm³	1.8–2.0
02	Water Absorption	%	≤0.5
03	Flexural Strength (Vertical Lamination)	MPa	≥340
04	Compressive Strength (Vertical Lamination)	MPa	≥350
05	Impact Strength (Parallel Lamination, Notched, Simply Supported Beam)	KJ/m²	≥37
06	Shear Strength (Parallel Lamination)	MPa	≥34
07	Tensile Strength	MPa	≥300
08	Electrical Strength (Vertical Lamination, in Oil, 90℃±2℃)	1 mm	≥14.2 KV/mm
		2 mm	≥11.8 KV/mm
		3 mm	>10.2 KV/mm
09	Breakdown Voltage (Parallel Lamination, in Oil, 90℃±2℃)	KV	≥40
10	Dielectric Loss Factor (50 Hz)	–	≤0.04
11	Insulation Resistance	Normal	Ω
		After 24h Water Immersion	≥5.0×10¹⁰
12	Flammability (UL-94)	–	V-0

Processing Methods

Custom processing according to drawings: drilling, CNC milling, lathe turning, precision CNC carving, and other machining methods.

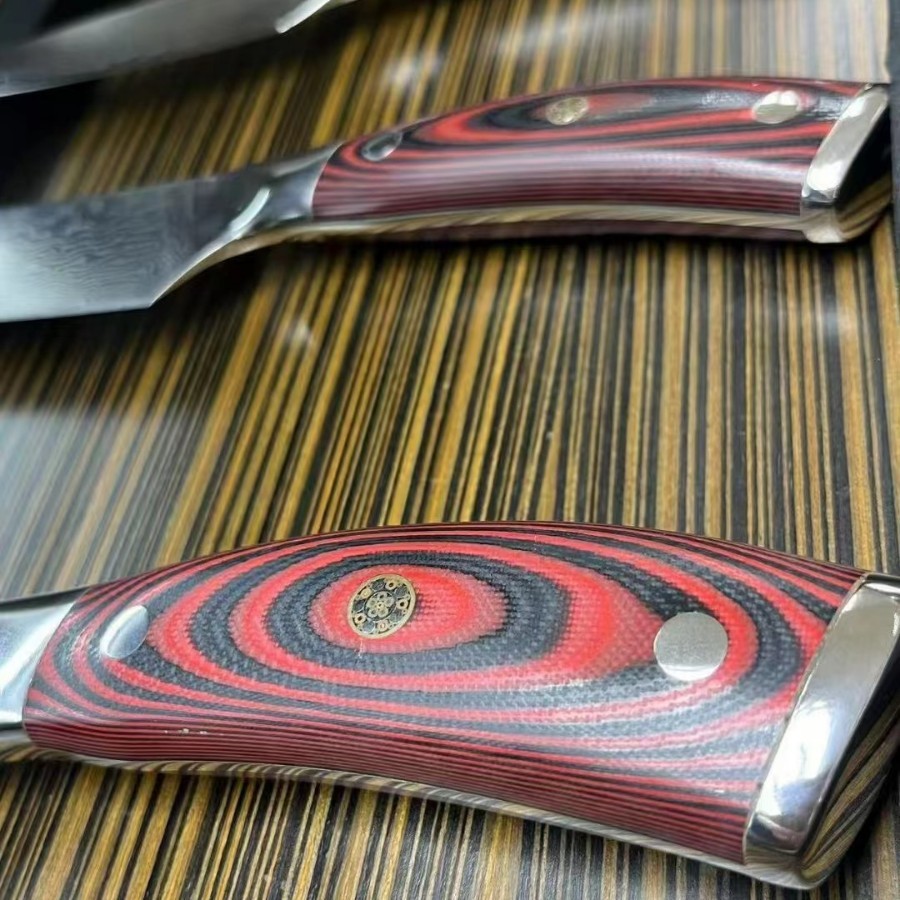

Processing Cases

(Here you can insert images or examples of machined parts.)

ca1
